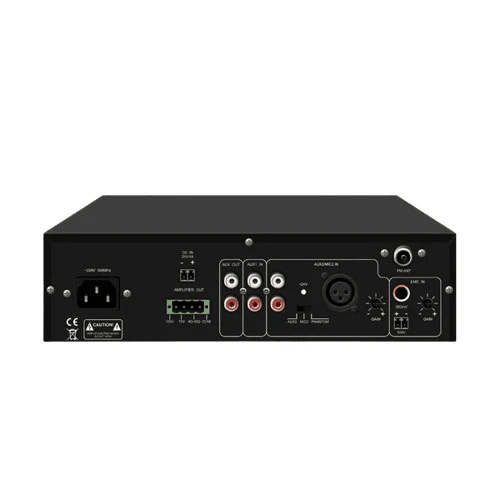

60W Mini Digital Mixer Amplifier
● 2 MIC inputs, 2 line inputs, 1 line output.
● Built-in Bluetooth, FM, and USB functions.
● 2 EMC inputs (100V/375mV), 1 EMC output.
● Can be controlled by the infrared remote controller.
● Support 100V/70V constant voltage output, and 4-16Ω constant resistance output.
| Model | MP35UB | MP60UB | MP120UB |
| Power Supply | ~110-240 50/60Hz | ||
| MIC1 Input Sensitivity | 5.5mV±1mV | 7mV±1mV | |
| MIC2 Input Sensitivity | 5.5mV±1mV | 7mV±1mV | |
| AUX1 Input Sensitivity | 350mV±10% | 300mV±10% | |
| AUX2 Input Sensitivity | 350mV±10% | 300mV±10% | |
| EMC Input Sensitivity | 350mV±10% | ||
| MIC Frequency Response | 200Hz~10kHz (±3dB) | 100Hz~8kHz (±3dB) | |
| AUX Frequency Response | 100Hz~15kHz (±3dB) | 80Hz~15kHz (±3dB) | |
| Noise | <5mV (4Ω load out) | ≤6mV (4Ω load out) | |
| Distortion | <1% 1KHZ | ||
| Treble Adjustment | 10dB (±2) | ||
| Bass Adjustment | 10dB (±2) | ||
| Rated Output Power | 35W | 60W | 120W |
| Interface Output Mode | 70V, 100V (constant voltage output), 4-16Ω | ||
| Power Consumption | 10W | ||
| Machine Size (D×W×H) | 198×247×66mm | ||
| Package Size | 302×343×121mm (1PC) | ||
| Maximum Package Size | 355×630×283mm (4PCS) | ||
| Net Weight | 2.55kg | 2.6kg | 3kg |
| Gross Weight | 3.2kg (1PC) | 3.25kg (1PC) | 3.7kg (1PC) |
